Application Liquid Ethane/Propane
Condensate Sampling Systems

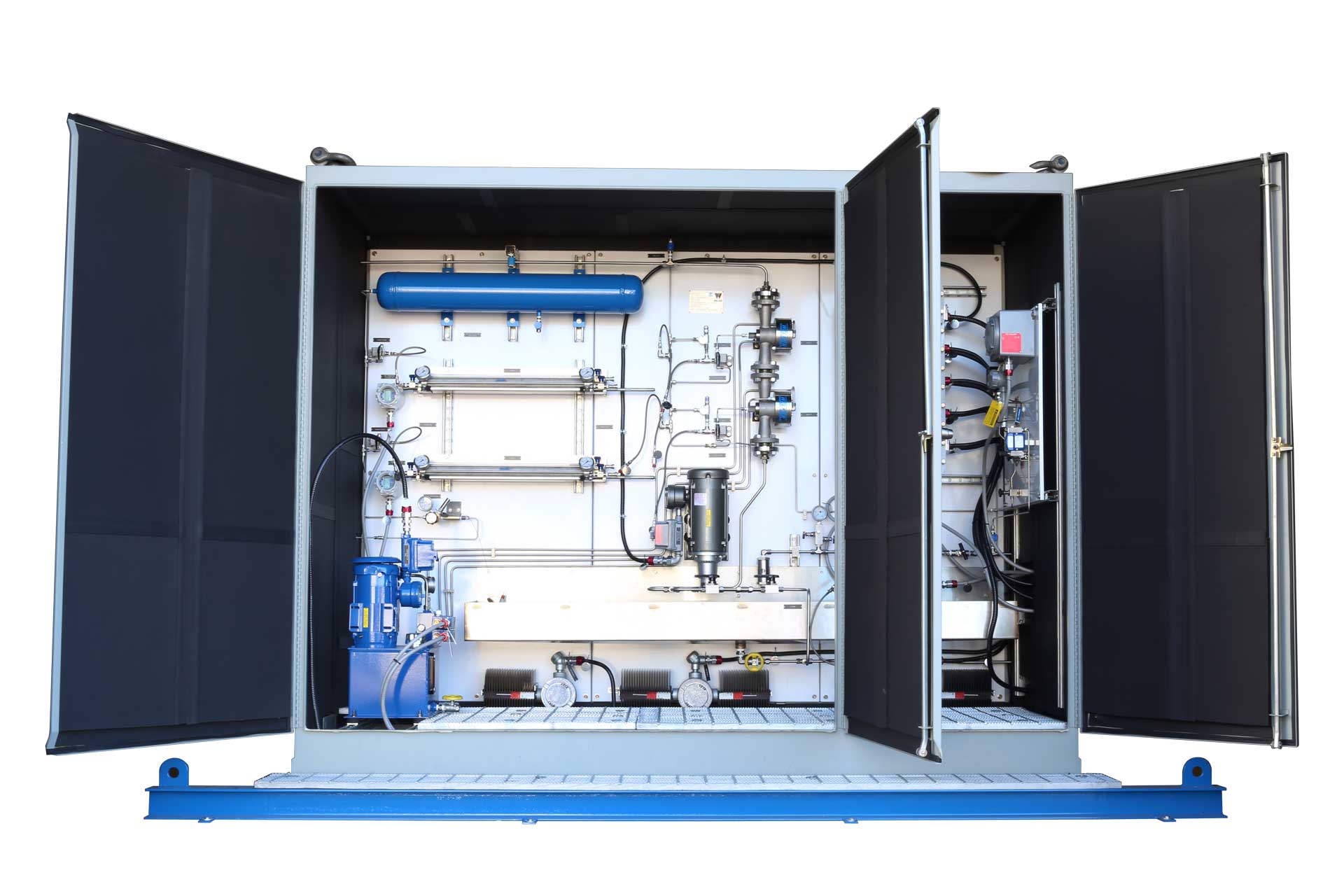

Welker has been awarded the delivery of three Condensate Sampling Systems. The supply consists of three fast loop sampling systems utilizing our inLoop™ sample pumps and multiple CP-2 constant pressure cylinders within an enclosure. The completely customized measurement systems include an integrated moisture analyzer for real time process data, Welker’s electrohydraulic system (EHUC) for powering the composite samplers, and a customized programmable logic controller (PLC) which controls the entire system and is complete with alarm and shut down functions.
Composite Liquid Ethane/Propane Sampling Systems
Welker Products

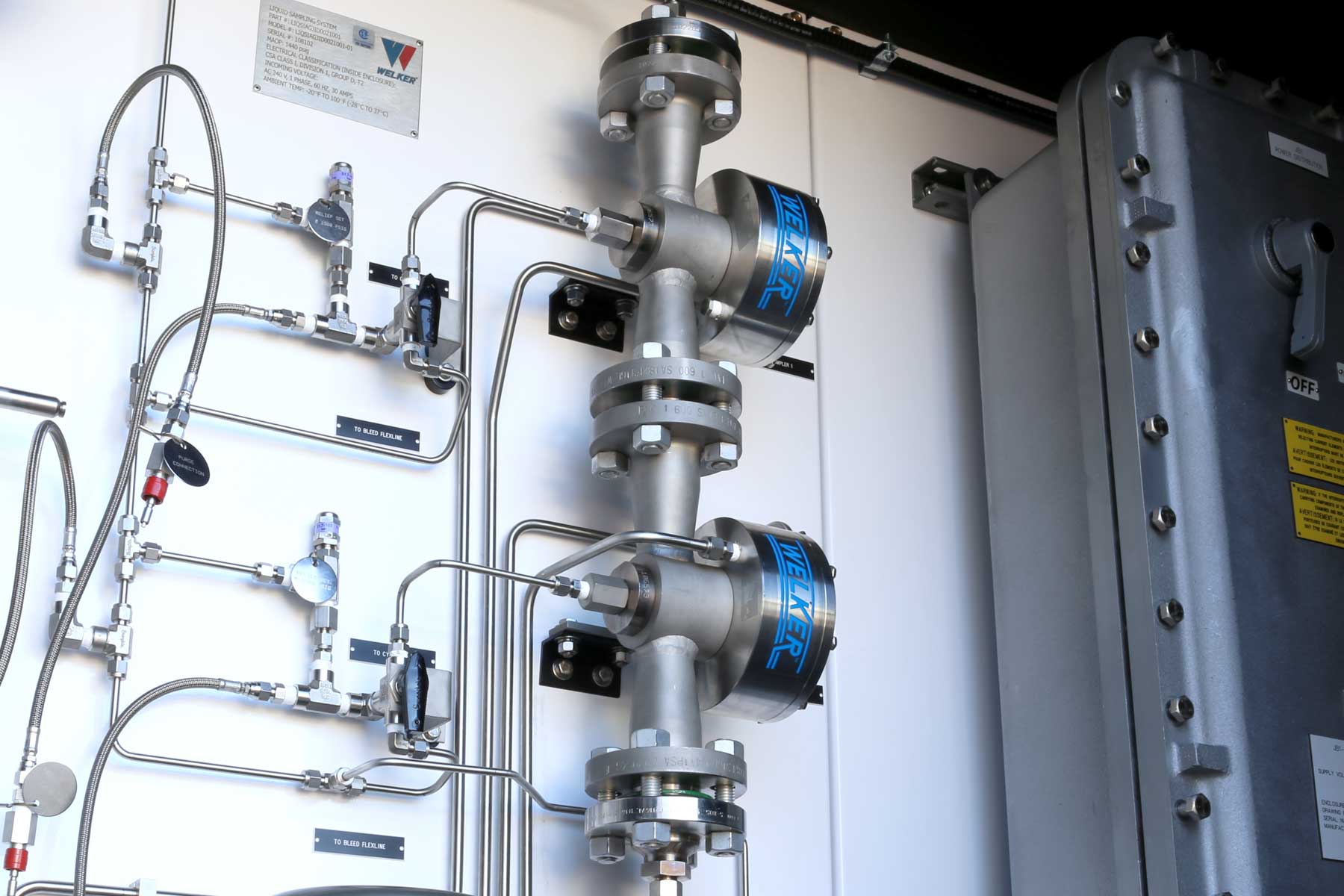

inLoop™ Sampler
The inLoop™ Sampler is perfect for extracting representative liquid samples from a bypass stream under full line pressure.
CP-2 Cylinder
The CP-2 Constant Pressure Container preserves sample integrity by collecting and maintaining your sample at pipeline pressure while being transported for analysis.
EHUC
When air supply is unavailable, our crude oil samplers use dependable hydraulic power to actuate every sample grab.
The three systems will be installed at various metering stations. This new pipeline system will transport liquid ethane/propane mixes across Ohio and Michigan, ending at Winsor, Ontario. The pipeline system is set to have an initial capacity of 50,000 barrel per day (bpd) with the potential to be expanded to more than 75,000 barrels per day (bpd) in the future.
75K
BPD
Manufacturing Ideas.
Welker is a manufacturer and integrator of complete composite sampling and measurement solutions. Welker has been a leader in the oil and gas sampling and measurement industry for over 55 years. Welker continues to be active in the development of products and standards for customers within our industry. Kinder Morgan awarded these projects to Welker based on our industry experience, support capabilities, and flexibility to offer a customized solutions for their immediate needs.
